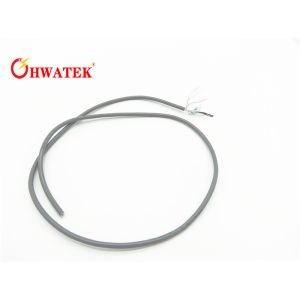

Servo Cable,Screened encoder cable with PVC Gray outer sheath

Construction

Conductor : stranded, bare copper
Insulation: PVC

Assembly:Core and pairs are twisted together

Shield or Braid: Tinned copper screen braiding (with drain wire)

Jacket:PVC gray

Standards
International: UL758 ,UL1581, UL2556, IEC60228 CL5,VDE0281

RoHS,REACH Compliant,

Technical data
Rated voltage:600V/1000V

Rated Temperature:-40℃-105℃

Flame: VW-1, FT1, FT2,IEC60332-1-3

Voltage withstand test:Test voltage: C/C: 2000 V C/S: 1000 V

Properties

Thin, lightweight, reliable functionality
Easy to install
Total screening reduces interferences from nearby cables

Minimum bending radius: Occasional flexing: 20 x outer diameter
Fixed installation: 6 x outer diameter

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.
